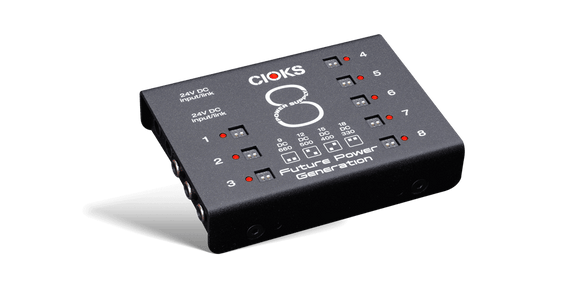

CIOKS C8E Power Supply Expander
CIOKS 8 is our largest switch-mode power supply extender and it features 8 isolated outlets which each deliver 9V DC with 660mA. All eight outlets offer four selectable voltages (9V, 12V, 15V and 18V).
CIOKS 8 was primarily designed to be used as a large extension to DC7 in case you need more outlets. If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7).
Features
*CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
*Ultra-low noise achieved by multistage filtering
*8 isolated DC-outlets, 6W each
*660mA at 9V DC on each outlet
*4 selectable voltages on each outlet
*Global overload status LED
*Total maximum output power 48W
*Mounting hardware for Pedaltrain and Templeaudio boards included
*Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards
*12 Flex cables included
*24V DC Link cable included
*Designed in Denmark, assembled in Poland
*5-year worldwide warranty
Specifications
*Outlet 1-8:
*9V DC / 660mA or
*12V DC / 500mA or
*15V DC / 400mA or
*18V DC / 330mA each
What's in the box
*CIOKS 8 power supply
*12 Flex cables
*50cm DC Link cable (to connect to CIOKS DC7)
*Mounting hardware (2 screws and a hex-key)
*Product sheet (drill guide)
*Flex and DC Link cable selection guide
*Sticker (sheet with 2pcs.)
*Manual
